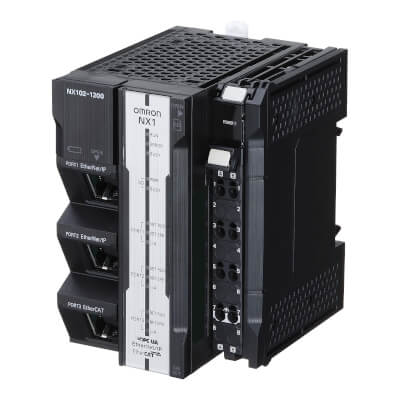

NX102-1000

Sysmac NX1 Modular CPU, 5MB program and 33.5MB data memory , built-in EtherCAT (2 servo axes, 4 PTP axes, total 64 EtherCAT nodes), 2 Ethernet ports (OPC-UA and EtherNet/IP)
Products Inquiry

Product Details

  • Controller functionality：Motion control, OPC-UA, Position control, Sequence control

  • Max. number of synchronous axes：2

  • Max. number of PTP axes：4

  • Max. number of axes (incl. virtual)：15

  • Primary task cycle time：1 ms

  • Program memory：5 MB

  • Variables memory：33.5 MB

  • Communication port(s)：EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB

  • Communication option(s)：Serial RS-232C, Serial RS-422, Serial RS-485

  • Max. number of remote I/O nodes：64

  • I/O system：NX I/O Bus

  • Max. number of expansion units：32

  • Height：100 mm

  • Width：66 mm

  • Depth：100 mm

  • Product overview and technical data sheets

  • NX102-1000.pdf
