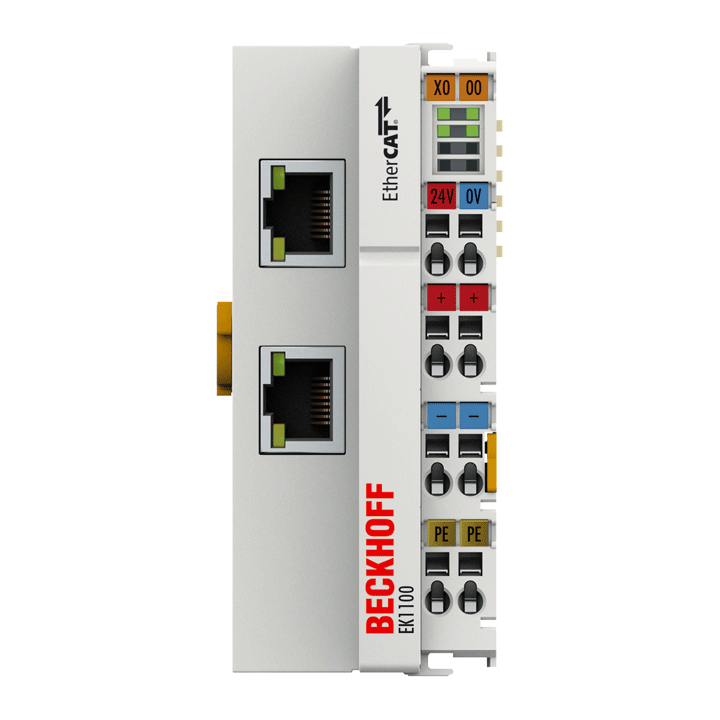

EK1100

Distance between stations：max. 100 m (100BASE-TX)

Delay：approx. 1 µs

Data transfer rates：100 Mbit/s

Power supply：24 V DC (-15 %/+20 %)

Stripping length：8…9 mm

Current load power contacts Imax：10 A

Current consumption from US：70 mA + (∑ E-bus current/4)

Power contacts：max. 24 V DC/max. 10 A

Dimensions (W x H x D)：44 mm x 100 mm x 68 mm
